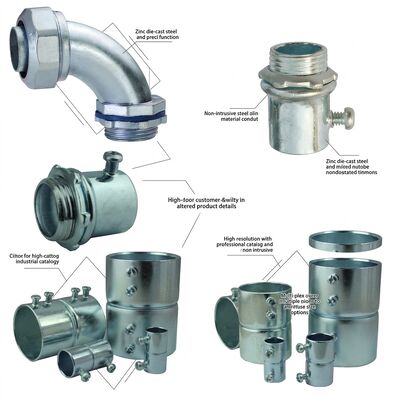

EMT Pull Elbow 90 Degree Access Fitting Waterproof Conduit Body 1/2 to 4 Inch UL Listed Pulling Solution

Name: EMT Pull Elbow 90 Degree Access Fitting Waterproof Conduit Body 1/2 to 4 Inch UL Listed Pulling Solution
Brand: YUYAO HENGXING PIPE CO.,LTD
SKU: HX-PE-90-Z
Price: 1.24 USD
Availability: InStock

브랜드 이름:	HX
모델 번호:	HX-PE-90-Z
MOQ:	2000 PC
가격:	negotiatiable
배달 시간:	20GP 시 15-20일
지불 조건:	신용장, 전신환

상세 정보

제품 설명

상세 정보

원래 장소:

중국 위야오

인증:

UL 514B E345464, ISO9001, SGS

재료:

아연 합금 ZAMAK 3 다이캐스팅

커버 종류:

네오프렌 개스킷으로 제거 가능

크기 범위:

1/2인치 ~ 4인치 고정 나사

각도:

90도

환경 등급:

NEMA 4 방수 콘크리트-밀폐

전압 정격:

600V 이상에 적합

포장 세부 사항:

개별 폴리백과 팔레트가 포함된 분할된 수출용 상자, 프로젝트 키트 제공 가능

공급 능력:

달 당 200 톤

강조하다:

EMT Pull Elbow 90 degree conduit fitting

Waterproof conduit body UL listed

1/2 to 4 inch EMT pulling solution

제품 설명

HX EMT 90-Degree Pull Elbow Access Fittings provide accessible pulling points at every directional change in conduit raceway systems. Removable gasketed cover plate with NEMA 4 waterproof rating. Zinc alloy ZAMAK 3 die-cast. Set-screw EMT connections on both ends. Complete size range from 1/2 inch to 4 inch. 27 years. UL E345464. ISO9001.

90°Pull Angle

NEMA 4Waterproof

600V+Voltage Rated

9Sizes 1/2-4"

-60%Pull Tension

ConcreteTight Rated

Jobsite Pain Points & HX Solutions

PAIN POINT: Excessive Pulling Tension Damages Conductors

Pulling through a standard 90-degree elbow without access creates friction hot spots. Insulation stretches, thins, and fails megohmmeter testing. Result: pull out the damaged conductors and start over. Cost: US$850+ in labor and materials per failed pull.

HX SOLUTION: Full-Access Pulling Chamber

Removable cover plate provides full access to the interior raceway at the bend point. Electricians grip conductors directly at the direction change, reducing pulling tension by up to 60%. Zero insulation damage. Passes megohmmeter on the first attempt.

PAIN POINT: Water Ingress in Outdoor and Wet-Location Pull Points

Standard pull elbows without gaskets allow moisture infiltration in parking garages, outdoor equipment pads, and wastewater facilities. Corrosion inside the raceway damages conductors over time and creates intermittent ground faults.

HX SOLUTION: NEMA 4 Watertight Sealing

Neoprene gasket between body and cover plate achieves NEMA 4 watertight, raintight, and oiltight ratings. Submersion-tested in production QC. Suitable for wet locations, outdoor installations, and concrete-embedded applications.

PAIN POINT: Oversized Conduit Bodies for NEC Fill Compliance

Cheap pull elbows have undersized interior cavities. To meet NEC Chapter 9 conduit body fill requirements, contractors must oversize to the next trade size, increasing material cost by 40-60%.

HX SOLUTION: NEC-Optimized Interior Volume

Generously proportioned interior cavity meets NEC conduit body fill requirements for standard conductor sizes and quantities at the nominal trade size. No oversizing required. No special engineering calculations. Code compliant as-specified.

Technical Specifications

Parameter	Specification
Body & Cover	Zinc Alloy ZAMAK 3 High-Pressure Die Casting
Cover Seal	Neoprene Gasket, Captive Design
Trade Sizes	1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4 inch
Conduit Connection	Set-Screw EMT Slip Fit, Both Ends
Cover Fasteners	Combo Head Steel Screws (Slotted / Phillips / Robertson)
Angle	90 Degrees Nominal
Environmental Ratings	NEMA 4 Watertight, Raintight, Oiltight, Concrete-Tight
Certifications	UL 514B Listed (E345464), ISO9001:2015, SGS
Voltage Rating	Suitable for Applications Above 600V
Temperature Range	-40 deg C to 120 deg C
Conduit Compatibility	EMT Thinwall, IMC, Rigid (Sizes 2-1/2 to 4 inch)
MOQ	2,000 PCS per Size
Lead Time	15-20 Days per 20GP Container
Port	Ningbo or Shanghai, China

Key Features

Full-Access Pulling Chamber — Removable gasketed cover provides complete access at the 90-degree bend. Reduces pulling tension by up to 60%. Eliminates conductor insulation damage.
NEMA 4 Multi-Rating — Watertight, raintight, oiltight, and concrete-tight. One fitting covers indoor, outdoor, and embedded applications.
NEC-Optimized Cavity Volume — Interior dimensions meet Chapter 9 conduit body fill requirements at nominal trade size. No oversizing needed.
Combo Head Cover Screws — Same tri-drive design across the entire HX fitting product line. One screwdriver handles all installation fasteners.
UL Listed Above 600V — Suitable for medium-voltage industrial power distribution beyond standard commercial building voltages.

Installation Scenarios

High-Rise Electrical Risers — Pull floor-by-floor at horizontal-to-vertical transitions instead of attempting continuous multi-story pulls
Industrial Overhead Conduit Racks — Provide pulling access where lighting and equipment circuits navigate around structural steel and HVAC ductwork
Hospital Critical Branch Circuits — Maintain accessible pulling points for future circuit modifications in operating room and ICU power distribution
Data Center Feeder Distribution — Keep pulling tension within manufacturer limits for large-gauge conductors at cable tray transition points
Water Treatment Plants — NEMA 4 watertight construction for pump station and outdoor chemical feed equipment power circuits
Cast-in-Place Concrete Slabs — Flush-mounted accessible cover remains serviceable after concrete pour for long-term maintenance access

Packaging & OEM

Individual polybag protection with body and cover packaged together. Foam cell dividers in master cartons prevent surface scratching. Project kitting available: pre-labeled cartons organized by floor, zone, or electrical room per contractor schedule. OEM private-label options: custom carton printing, branded inserts, QR-coded installation guides. 12-month defect warranty. Free replacement for quality non-conformance.
